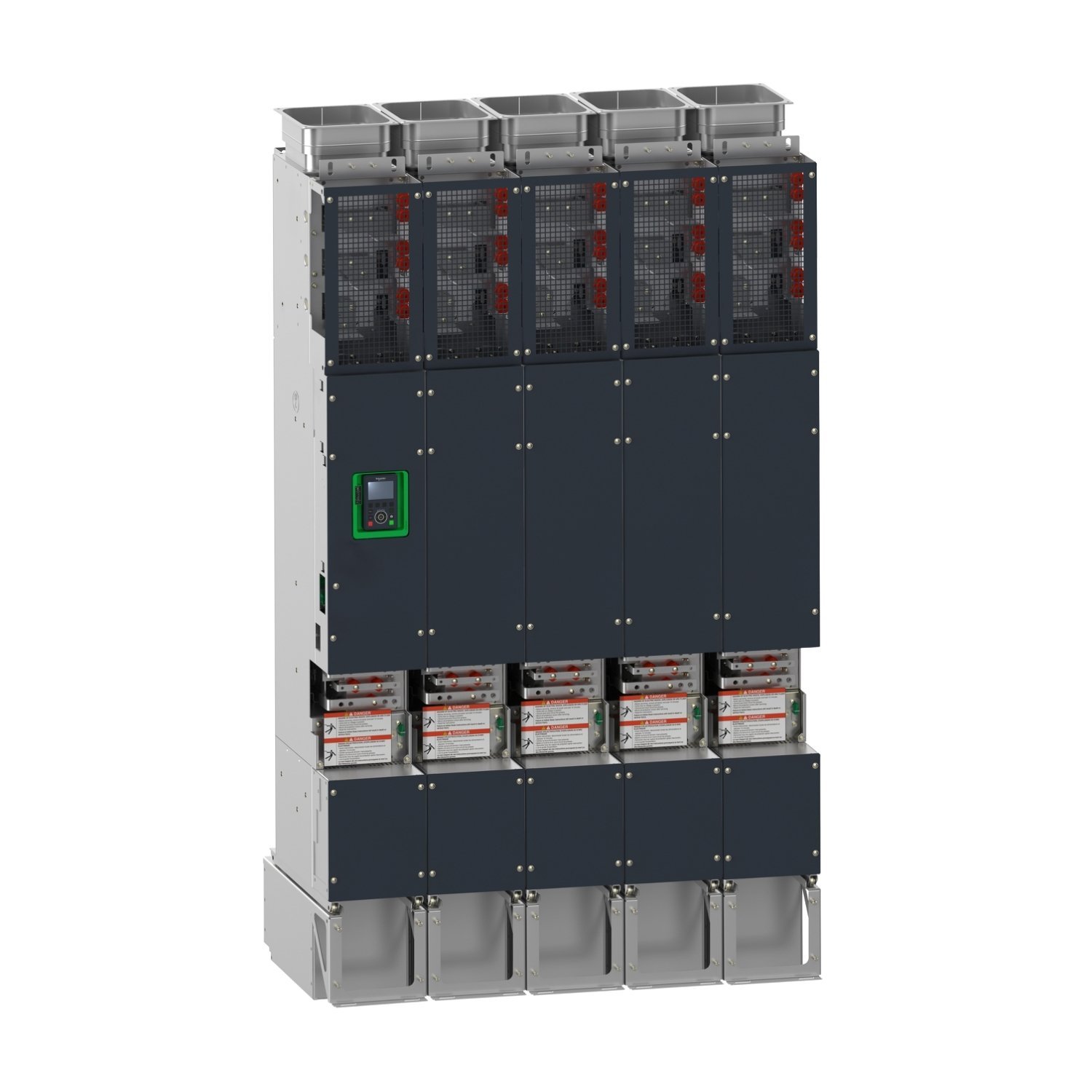

Variable speed drive, Altivar Process ATV600, APM, single 690 V, 1000 kW

Manufacturer: Schneider Electric

Part Number: ATV6A0M10Q6

Range of product	Altivar Process ATV600
Mounting mode	Cabinet mount
IP degree of protection	IP00 (for IP21 or IP54 cabinet integration) conforming to IEC 61800-5-1 \| IP00 (for IP21 or IP54 cabinet integration) conforming to IEC 60529
Supply frequency	50…60 Hz – 5…5 %
Network number of phases	3 phases
[Us] rated supply voltage	690 V – 15…10 %
Speed drive output frequency	0…500 Hz
Nominal switching frequency	2.5 kHz
Switching frequency	2…4.9 kHz adjustable with derating factor
Motor power kW	1000.0 kW at 690 V normal duty \| 800.0 kW at 690 V heavy duty
Line current	969.0 A at 690 V (normal duty) \| 779.0 A at 690 V (heavy duty)
Apparent power	1158 kVA at 690 V normal duty \| 931 kVA at 690 V heavy duty
Continuous output current	1030.0 A at 2.5 kHz normal duty \| 830.0 A at 2.5 kHz heavy duty
Maximum transient current	1133 A during 60 s (normal duty) \| 1245 A during 60 s (heavy duty)
Permissible temporary current boost	1.1 x In during 60 s (normal duty) \| 1.5 x In during 60 s (heavy duty)
Output voltage	<= power supply voltage
Frequency resolution	Display unit: 0.1 Hz \| Analog input: 0.012/50 Hz
Power dissipation in W	Forced convection: 17700 W, switching frequency 2.5 kHz (normal duty) \| Forced convection: 14200 W, switching frequency 2.5 kHz (heavy duty)
