132L4005 FC-103N132T7E54H2TGC3XXSXXXXAXBXCXXXXDX

Write a Review
SKU:
132L4005
>
FC-103N132T7E54H2TGC3XXSXXXXAXBXCXXXXDX

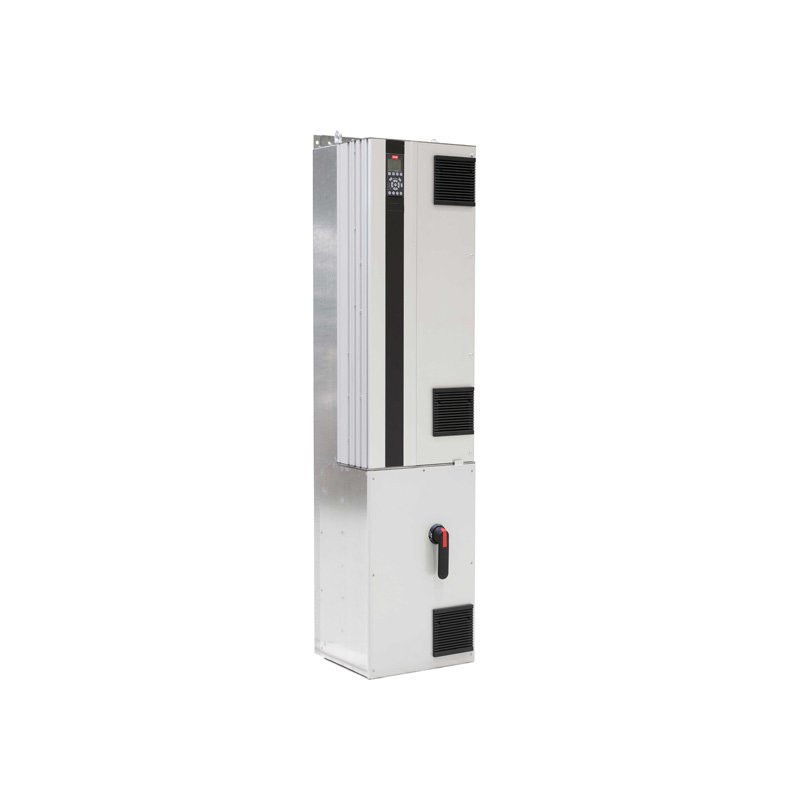

Frequency converter
FC-103N132T7E54H2TGC3XXSXXXXAXBXCXXXXDX
VLT® Refrigeration Drive FC-103
(N132) 132 KW / 200 HP, Three phase
525 - 690 VAC *, (E54) IP54 / Type 12
RFI filter Class A2
Safe Stop
Graphical Loc. Cont. Panel
Coated PCB, Mains Disconnect + Fuse
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: D5H

Other options according to Model code



Model code :
FC-103N132T7E54H2TGC3XXSXXXXAXBXCXXXXDX

Whether you want to operate compressors, pumps or fans, the VLT® Refrigeration Drive FC 103 gives you the opportuni.


Gross weight166.3 kg
Net weight166 kg
Volume0 l
EAN5714853434657


VLT® REFRIGERATION DRIVE FC 103 SERIES
Product View (Switch)GLBLGlobal (Standard)
Product GroupFC-VLT® Refrigeration Drive
Series103103
Power RatingN132(N132) 132 KW / 200 HP
PhaseTThree phase
Mains Voltage7525 - 690 VAC *
EnclosureE54(E54) IP54 / Type 12
RFI FilterH2RFI filter Class A2
Brake - Safe StopTSafe Stop
LCPGGraphical Loc. Cont. Panel
Coating PCBCCoated PCB
Mains Option3Mains Disconnect + Fuse
Adaptation AXStandard Cable Entries
Adaptation BXNo adaptation
Software ReleaseSXXXLatest release std. SW.
Software Language PackXStandard Language Pack
A OptionAXNo A Option
B OptionBXNo B Option
C0 Option MCOCXNo C0 option
C1 OptionXNo C1 option
C Option SoftwareXXNo software option
D OptionDXNo D option
Frame SizeD5HD5H
Product CatalogNO_VIEWNO VIEW
Typecode Part 1FC-103N132T7E54H2TGC
Typecode Part 23XXSXXXXAXBXCXXXXDX
Power 110% (NO) [KW]132
Height [mm]1324,0
Width w/ no C options [mm]325,0
Depth [mm]381,0
Depth with Option A/B [mm]381,0
kVA185
Power Loss NO [W]2099
Power Loss NO [W]2165
Continuous Current (NO) [A]162
Intermittent Current (NO) [A]178
Continuous Current (NO) [A]155
Intermittent Current (NO) [A]170
Calculated Gross Weight [kg]166.3
Calculated Net Weight [kg]166
Material Gross Weight166.3
Material Net Weight166
VendorERR01Cannot Determine Vendor
Recommended FactoryERR01Cannot Determine Vendor
Modelcode01FC-103N132T7E54H2TGC
Modelcode023XXSXXXXAXBXCXXXXDX
